System Images ​

This page displays visual representations of the Embedded Blockchain Surveillance System components, including individual hardware components, system diagrams, and the IPFS dashboard.

Individual Components ​

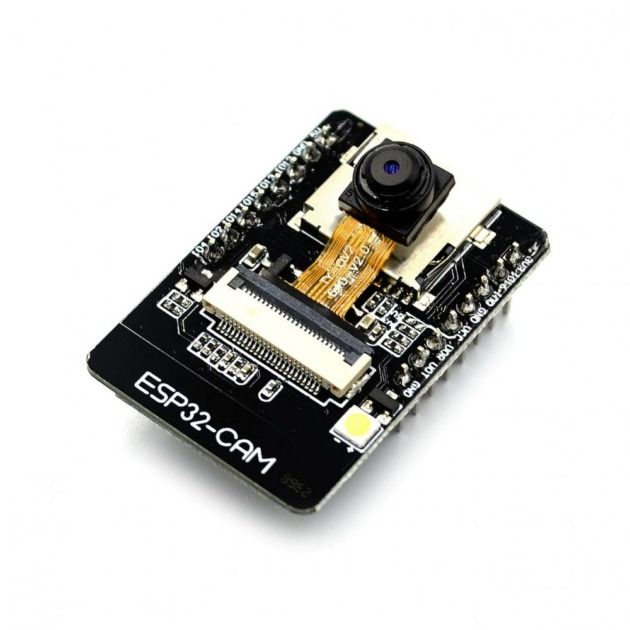

ESP32-CAM Microcontroller ​

ESP32-CAMThe main controller with integrated camera module for capturing surveillance footage.

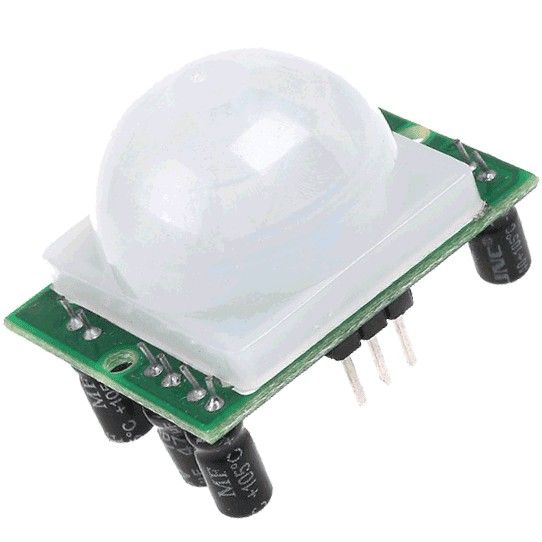

PIR Motion Sensor ​

PIR Motion SensorPassive infrared sensor used to detect motion and trigger video recording.

Slide Switch ​

Slide SwitchMain power switch for controlling the entire system's power state.

LM2596 DC-DC Buck Converter ​

LM2596 DC-DC Buck ConverterLM2596 DC-DC buck converter that steps down 7.4V battery voltage to 5V for the ESP32-CAM.

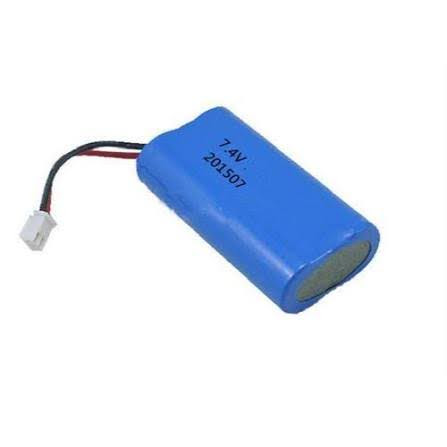

7.4V Li-ion Battery ​

7.4V Li-ion Battery40000mAh rechargeable Li-ion battery providing power for extended surveillance operations.

System Diagrams ​

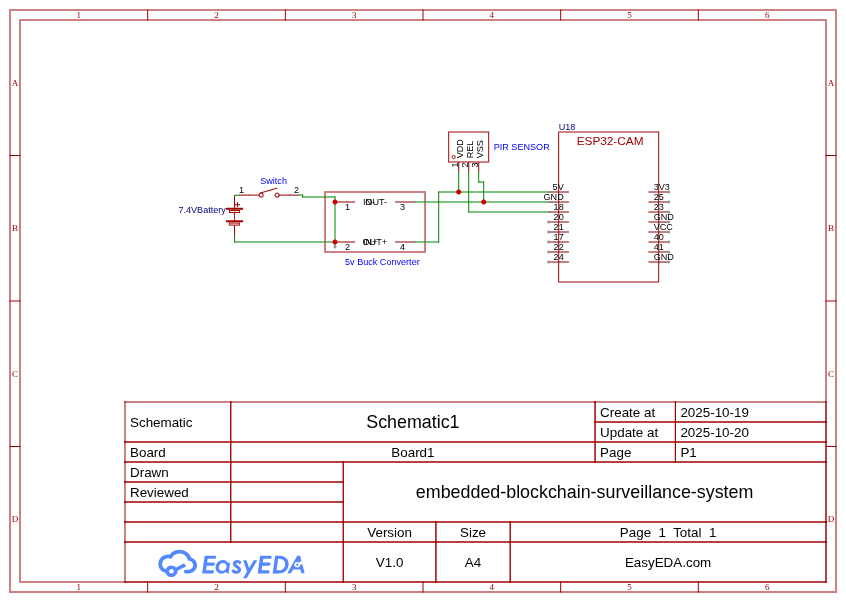

Circuit Schematic ​

Circuit SchematicComplete circuit diagram showing the connections between all components in the Embedded Blockchain Surveillance System.

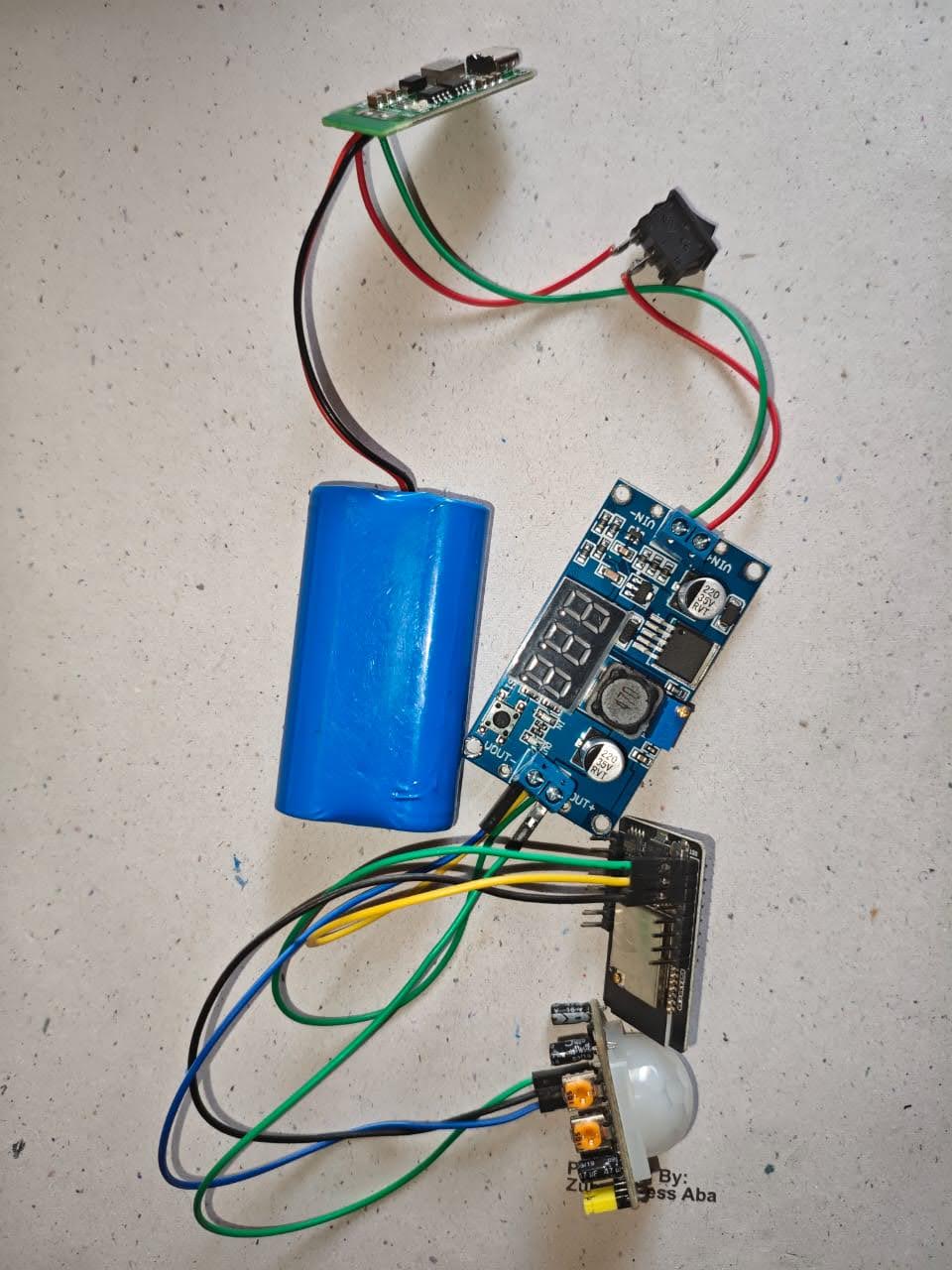

Coupled System Implementation ​

Coupled SystemActual implementation of the coupled system showing all components connected and working together.

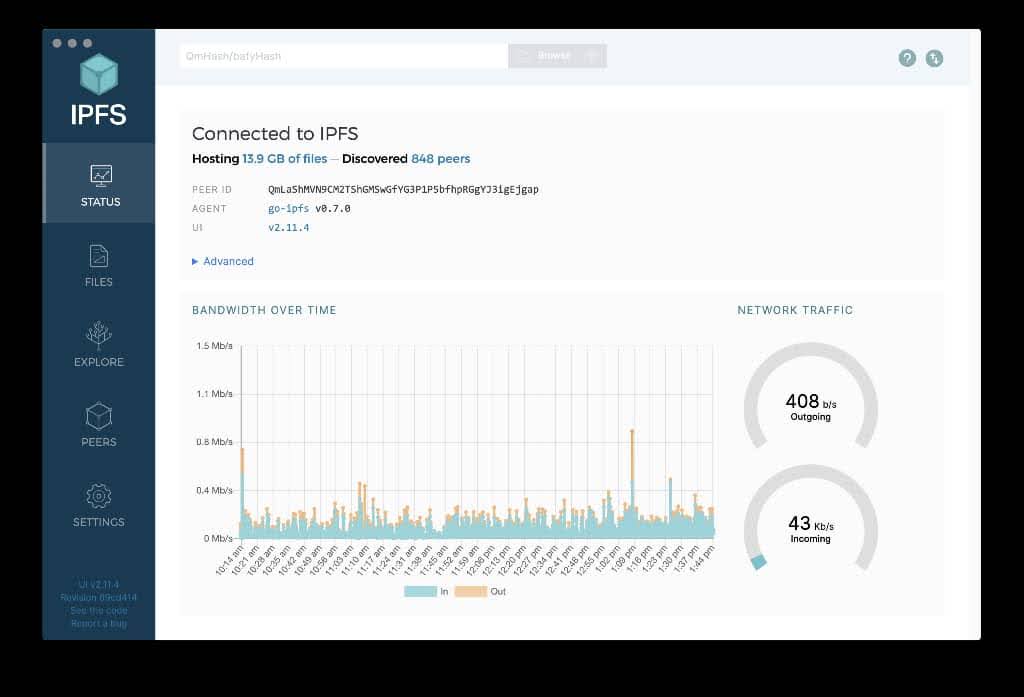

IPFS Dashboard ​

IPFS DashboardDashboard showing the IPFS storage interface where surveillance videos are stored with content addressing through CIDs.
